Description

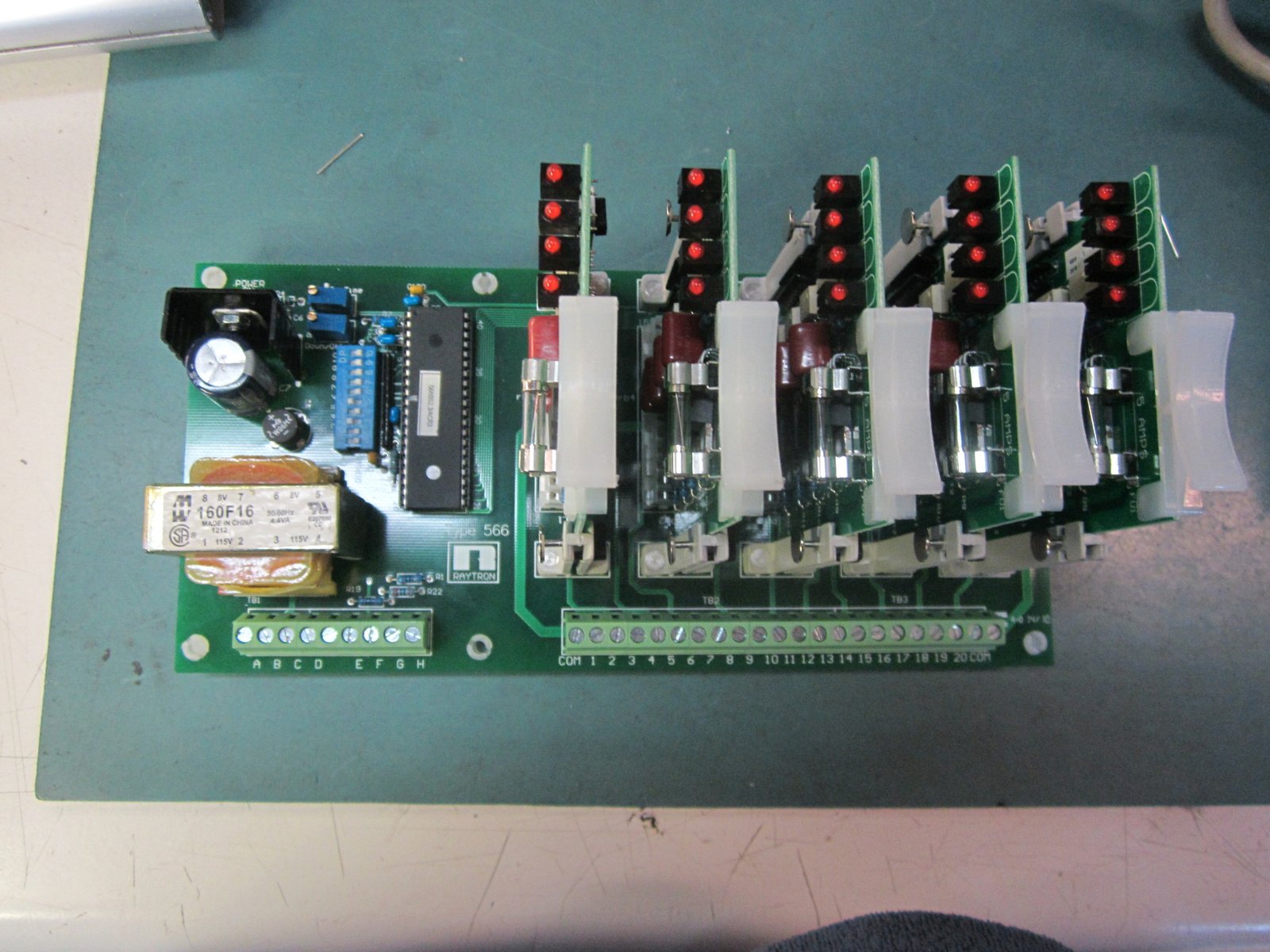

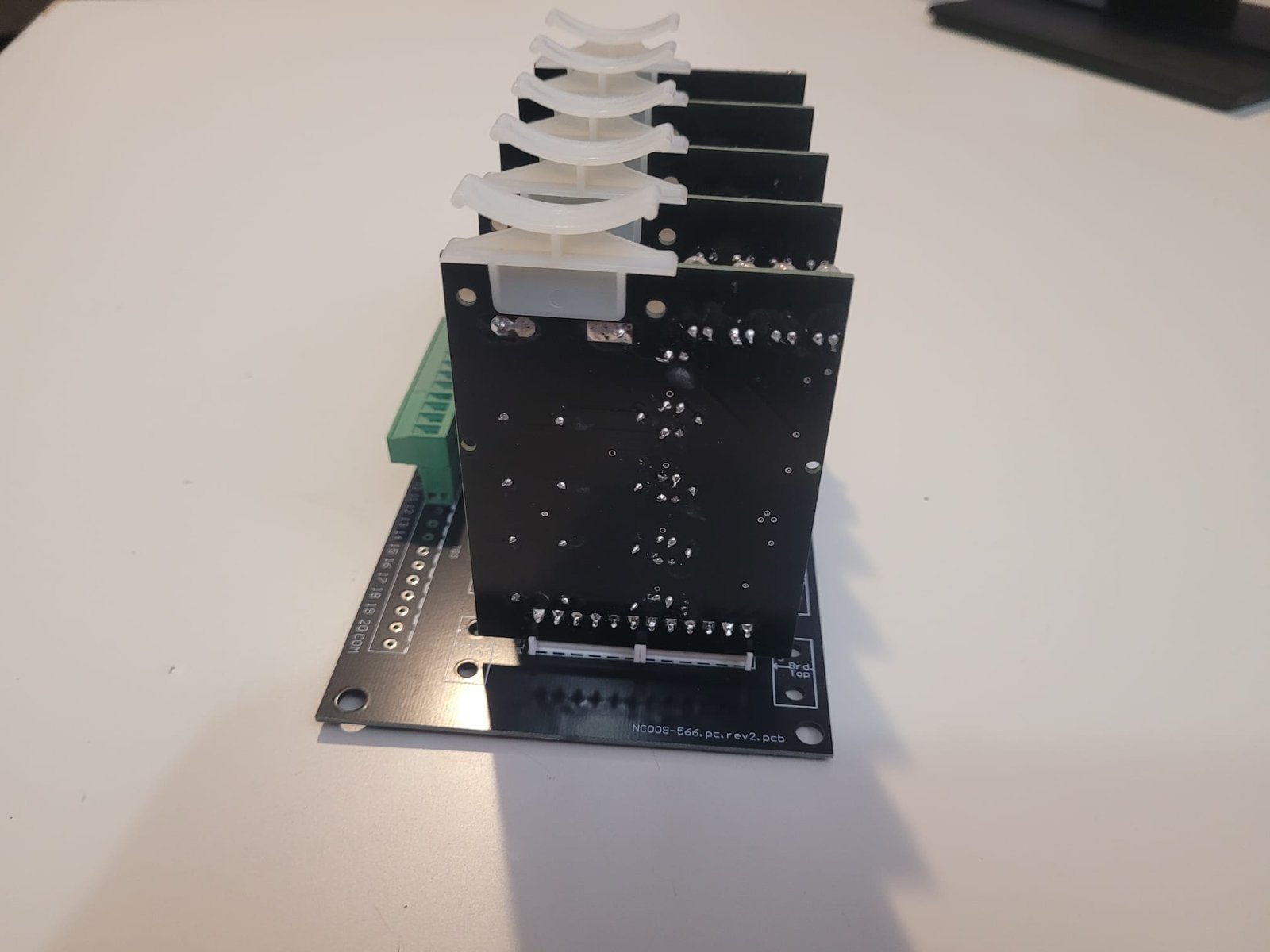

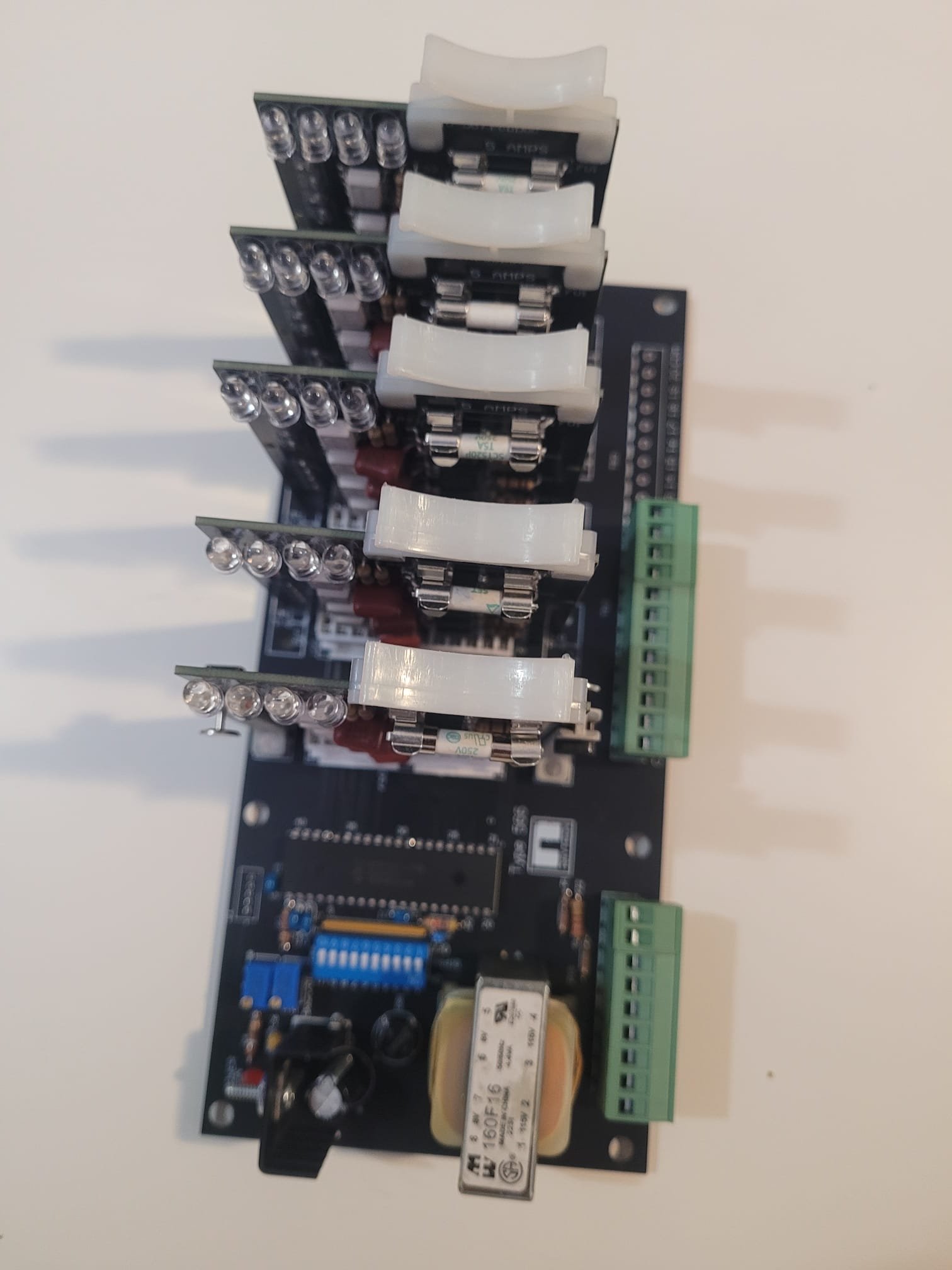

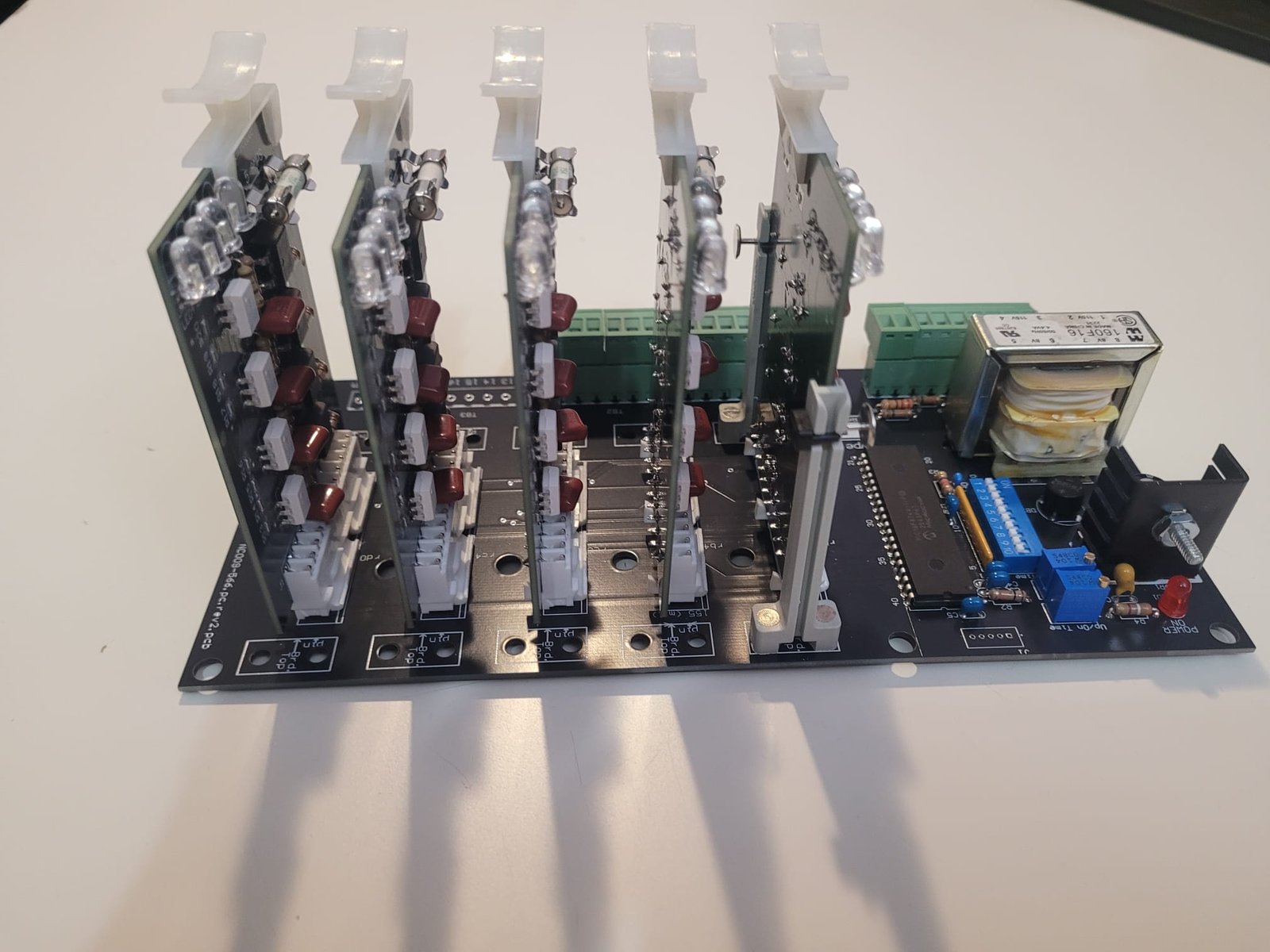

566 Series | Multi-Step Sequential Controller (4 – 20 Steps)

The Raytron 566 Step Control is a machine sequencing controller that organizes and advances operating stages one step at a time, using input signals and timing logic to control the order of machine actions.

What it usually does in a machine

A board of this type is generally responsible for functions such as:

• Step advance logic
• Moves the machine from one stage to the next,
• Sequence control
• Determines which output or function is active at each moment
• Timing / dwell control
• Keeps a function active for a preset time before advancing
• Input monitoring
• Waits for confirmation from switches, sensors, or interlocks
• Cycle coordination
• Manages the start, progression, and completion of the machine cycle
• Output switching
• Energizes relays or control signals for valves, motors, clutches, solenoids, or other machine functions.

The 566 Series Step Control is a versatile and highly reliable sequential controller designed to manage multi-stage industrial processes with precision. Capable of handling anywhere from 4 to 20 discrete steps, this series provides a scalable solution for complex timing and sequencing requirements in automation, environmental control, and manufacturing.

Engineered for flexibility, the 566 Series allows operators to define exact sequences, ensuring that each phase of a process triggers with absolute accuracy. Its robust design is ideal for high-duty cycle applications where consistency is paramount.

Key Features

• Scalable Sequencing: Easily adjustable to manage between 4 and 20 steps, making it adaptable to a wide range of machinery.

• Precision Timing: High-accuracy logic ensures seamless transitions between steps, reducing downtime and process errors.

• User-Friendly Configuration: Simple interface for setting step parameters, allowing for quick setup and field adjustments.

• Industrial Durability: Built to withstand electrical noise and harsh industrial environments, ensuring a long service life.

• Versatile Integration: Compact footprint designed for easy mounting within standard control panels and enclosures.

Technical Specifications

Common Applications

The 566 Series is the go-to solution for industries requiring ordered, multi-step operations, including:

• Dust Collection Systems: Managing sequential pulse-jet cleaning cycles.

• Water Treatment: Controlling multi-stage filtration or chemical injection sequences.

• HVAC Systems: Staging compressors or heating elements for energy efficiency.

• Manufacturing: Coordinating complex “pick and place” or assembly line movements.

Design Note: The 566 Series is favored by engineers for its “set it and forget it” reliability. Whether managing a simple 4-step cycle or a complex 20-step process, this controller provides the stability your automated systems demand.
